Hanger bolt set for PV module mounting, corrugated roof 200 | 12

Hanger bolt set for PV module mounting, corrugated roof

Rend. szám 5901826 | EAN-kód 4012197459802

Rend. szám / Típus

Hossz

Szárátmérő

Termékleírás

Termékleírás

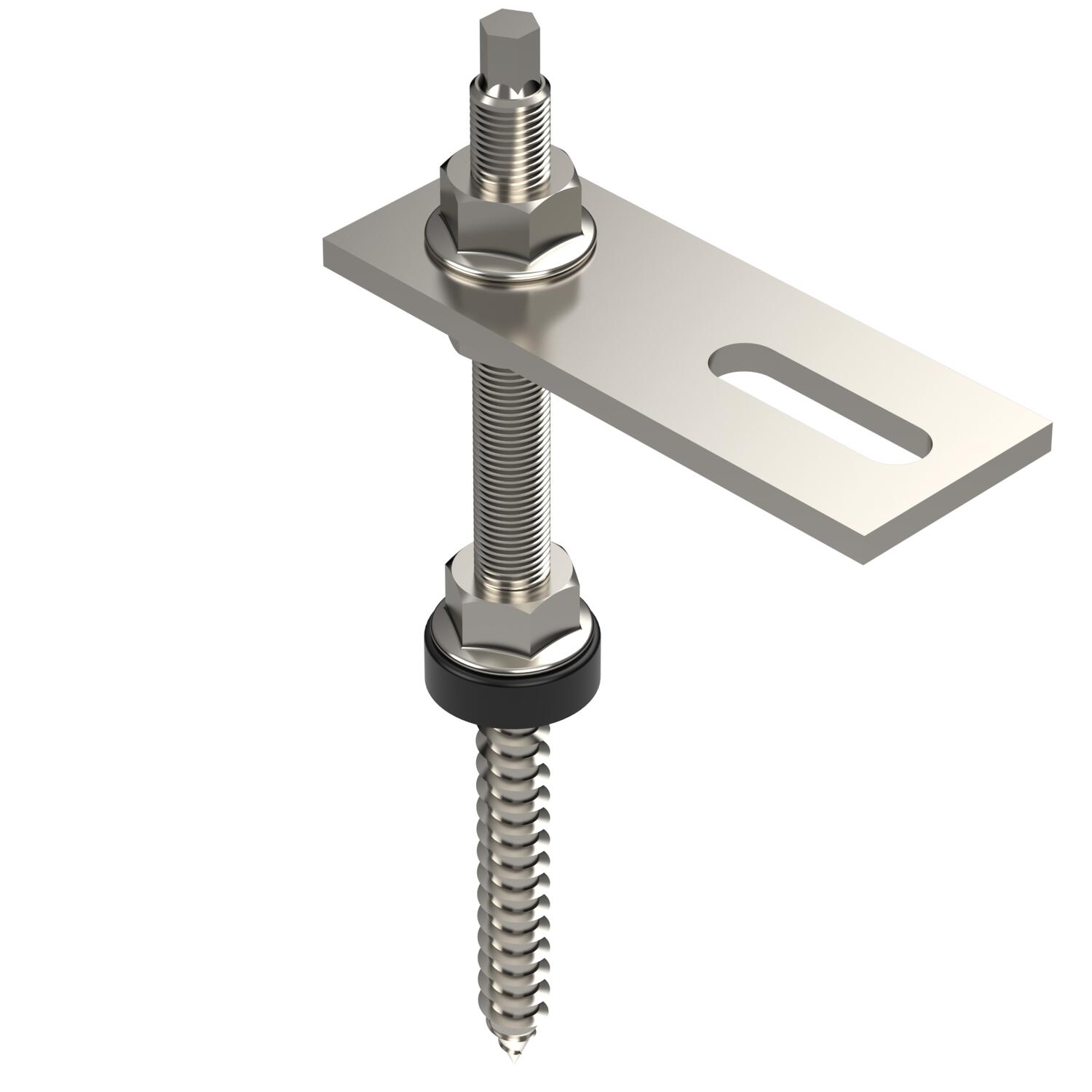

Hanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).

Műszaki adatok
