Hollow core anchor G

Rend. szám 3499042 | EAN-kód 4012197504588

Termékleírás
Termékleírás

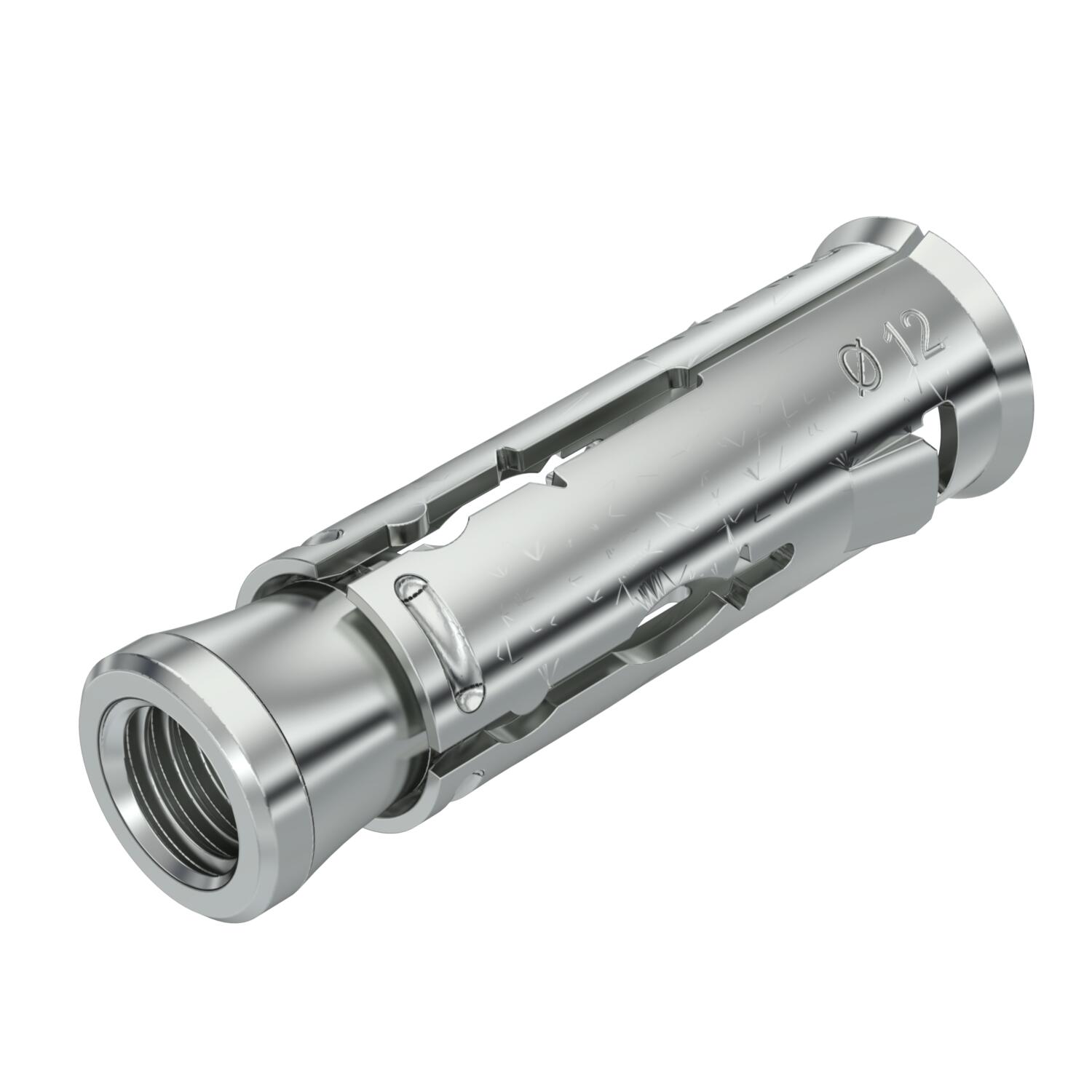

Hollow core anchor with internal thread for anchoring, for example, cable tray constructions, pipes, suspended ceilings, wooden constructions, etc. on walls and ceilings made from stressed concrete hollow-core slabs in indoor and outdoor areas. With an edge to prevent the anchor from being pulled in. When the fastening screw is screwed in the expansion sleeve is spread open through the cone and tightens against the drill hole walls. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-21/0857.
  • Communautés Européennes, az EK iránymutatásai szerinti megfelelőségi nyilatkozat
Műszaki adatok

Műszaki adatok

Anyag acél
Csavarmenet típusa metrikus
Csavarral nem
Felület galvanikusan horganyzott
Furatátmérő min. 12 mm
Furatmélység 60 mm
Menet M8
Menettel igen
Méret 12x43
Metrikus menet 8
Szín cink
Minden típus

Minden típus

Típus Furatátmérő min. Menet Rend. szám Mennyiség Legkisebb eladási egység
FHY M6 10 mm M6 3499040
50 Darab
FHY M8 12 mm M8 3499042
25 Darab
FHY M10 16 mm M10 3499044
25 Darab
FHY M12 18 mm M12 3499046
25 Darab
